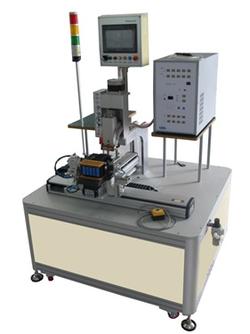

Semi auto spot welding M/C

Model : WWUB 1

● Cell insertion method: The operator automatically inserts the JIG after top welding and automatically rotates

● Cell discharge method: Automatic discharge to the position designated by the operator after welding
● Mechanical: consists of X / Y axis Robot and z axis Motor Head

● Driving method: Driving to exact position using PLC & Touch screen.

● W · D · H · Weight: 1050mm · 950mm · 1500mm (H) · about 150kg.

● TACT TIME: 1.02 sec for one welding.

● Input power: 220V, single phase, 60HZ.
