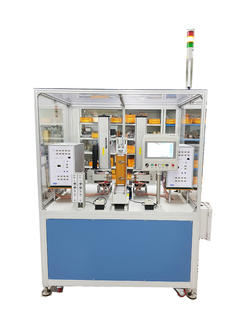

BATTERY PACK SIDE Spot Welding M/C(2CH)
Model : BATTERY PACK SIDE SPOT Welding M/C - 2CH.


This equipment is a method to apply welding pressure by applying pressure while applying proper pressure, and applying pressure when it is heated by heat generated by contact resistance and resistivity of metal itself
Welding: PCM + PTC + NI Plate, etc.

● Loading-Unloading: Manual loading-unloading method

                                    Automatic Extraction to operator space after operation
● Mechanical: X motor head type, Y Robot 1set installation

                          Z Pneumatic control (2 step step possible).

                          Follower pressure: max 7kgf (simultaneous measurement of two electrodes)

● Welding controller: TMS-10-2CH 2set

● Electrode Holder: Air Cooling System, Weld Tip Φ3, 1.5R

● Driving method: Driving to exact position by PLC & Touch screen

● Precise and stable welding is realized by built-in head controller

       (Before, after, and after welding)

● W · H · D · Weight: 1400mm, 24000mm, 1760mm · 800kg

● TACT TIME: - 168 Point 169 sec

                            1sec per welding (4 points for one welding)
