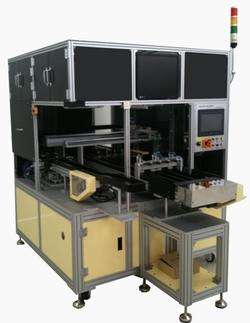

Cell Grading M/C

Model : WGCN14

● Cell injection method: loading the 10ea cell manually

● Cell classification: Grade 4 in quality and grade 1 in defect

User Setting in the range of 1mV to 50mV

● Cell discharge method: Classified Cells are released by the operator

● Driving sequence: MAIN-controlled PLC & PC DATA

● Measuring facility: Two HIOKI (3561) configurations

● Measurement method: 2 cell measurements and transfer the classification unit

● Input power: 220V 1-phase 50/60 Hz

● TAT: MAX 40 PPM (part per minute), 40ea measurement per minute

● W, H, D and Weight: 1400mm, 2420mm, 1780mm ·500Kg
